BRBN 2.5 HD Series 3-Way Rear Coilover Kit For Ford Bronco

Availability: On Backorder (Available 2026)
Fitment: 2021+ Ford Bronco (Excludes Raptor)

Overview
Engineered from premium-grade materials and designed by off-road enthusiasts, the BRBN 2.5" HD Rear Coilover is built to thrive where the trail is at its roughest. We took it beyond the drawing board — subjecting it to independent dyno testing against a major industry competitor — and proved it delivers a broader adjustment range, more consistent damping, and superior control under extreme conditions. This is the rear suspension solution for drivers who demand more than “good enough.”

Intended Use
The HD spec rear coilover is tuned for versatility and abuse resistance. Whether your Bronco is a fully loaded daily driver, a weekend overlander stacked with gear, or a dedicated off-road build trailered to the course, BRBN’s rear setup offers the adjustability and durability to keep pace with your adventures. The rear HD coilovers come equipped with a 4.8 KG spring rate (vs our 4 KG spring rate on the standard 2.5 series). This is ideal for carrying a consistent additional 400-800 pounds in vehicle accessories (racks, aftermarket bumpers, recovery gear, etc).

Rear Coilover Features & Specifications

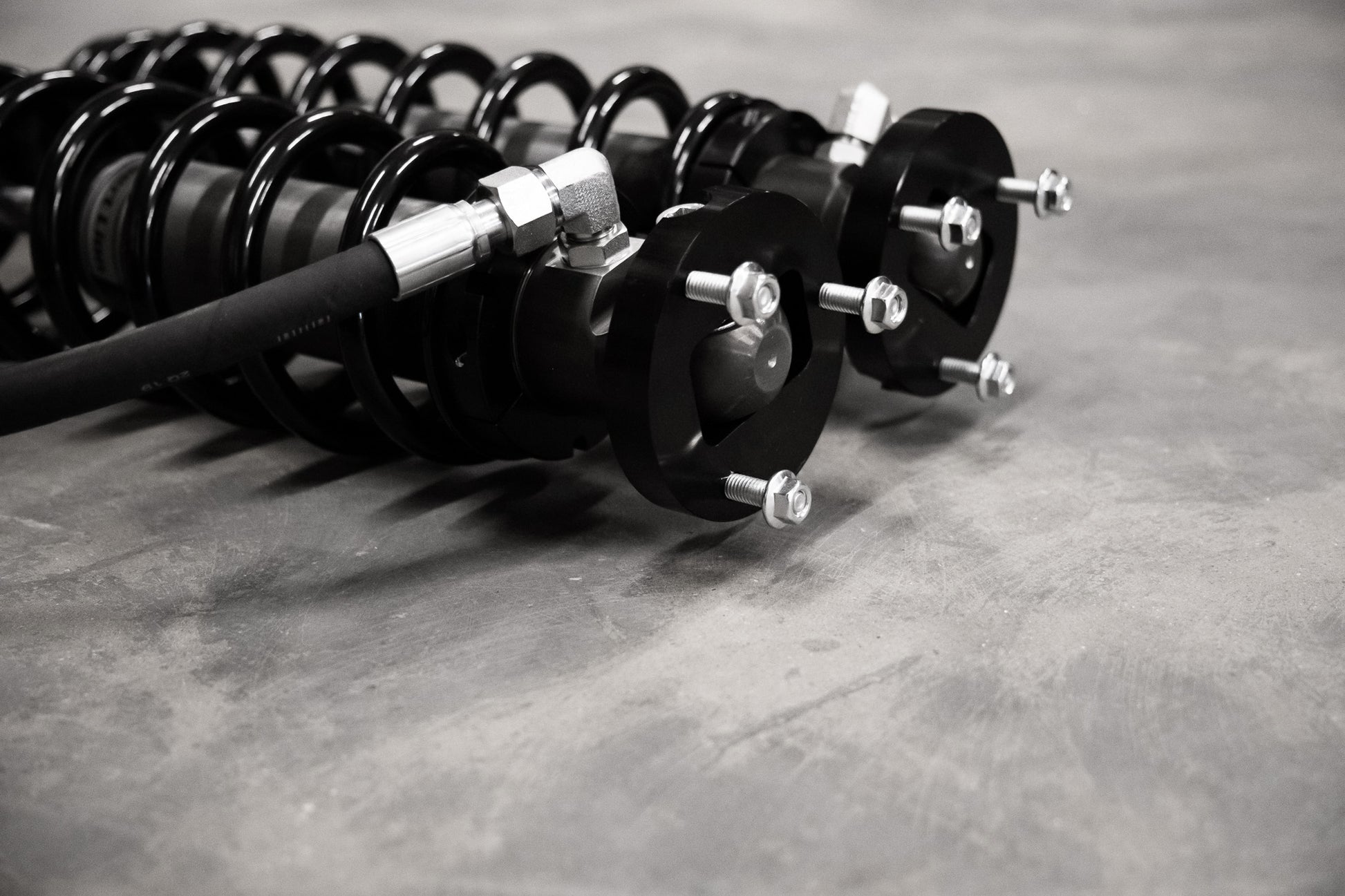

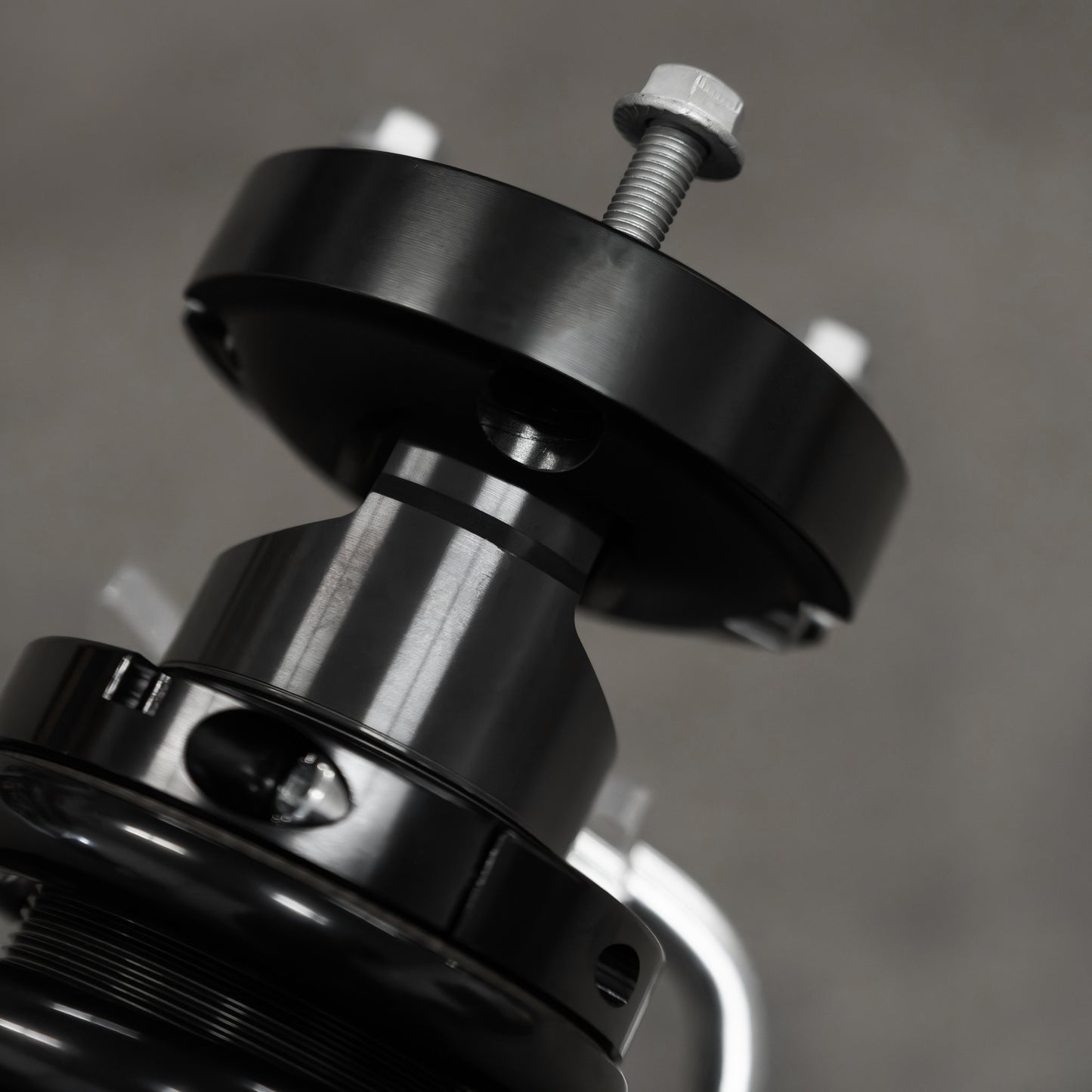

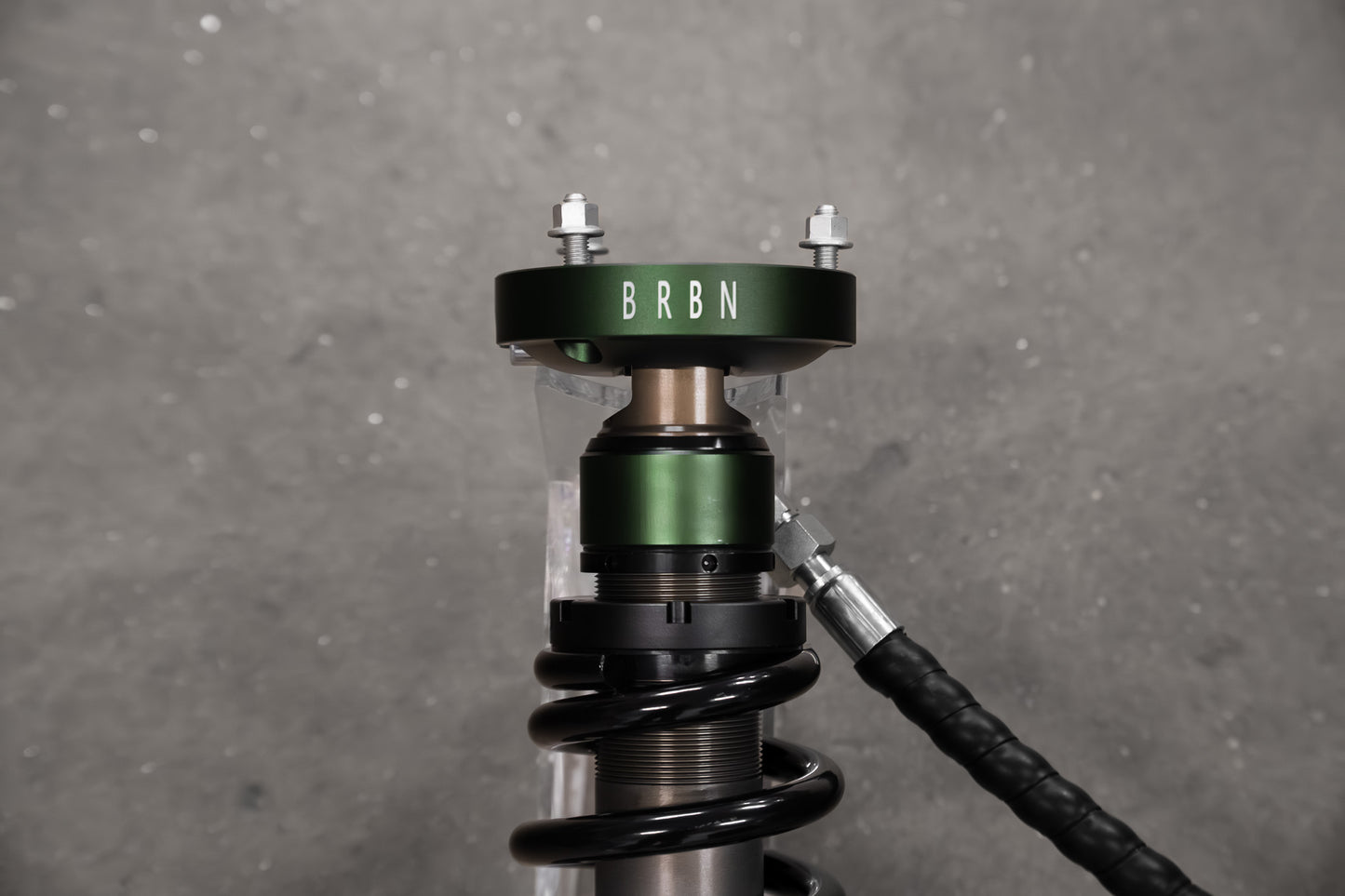

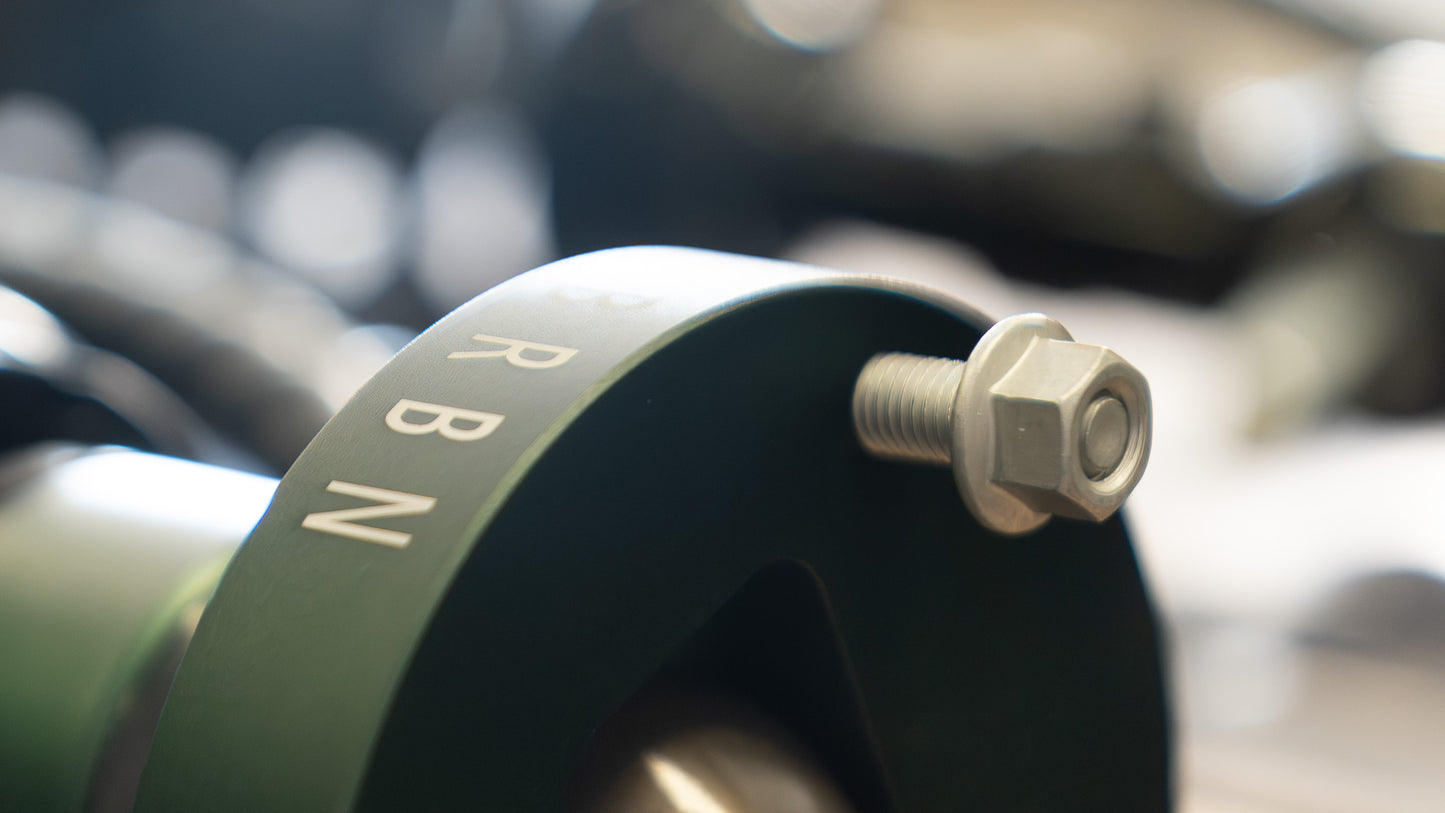

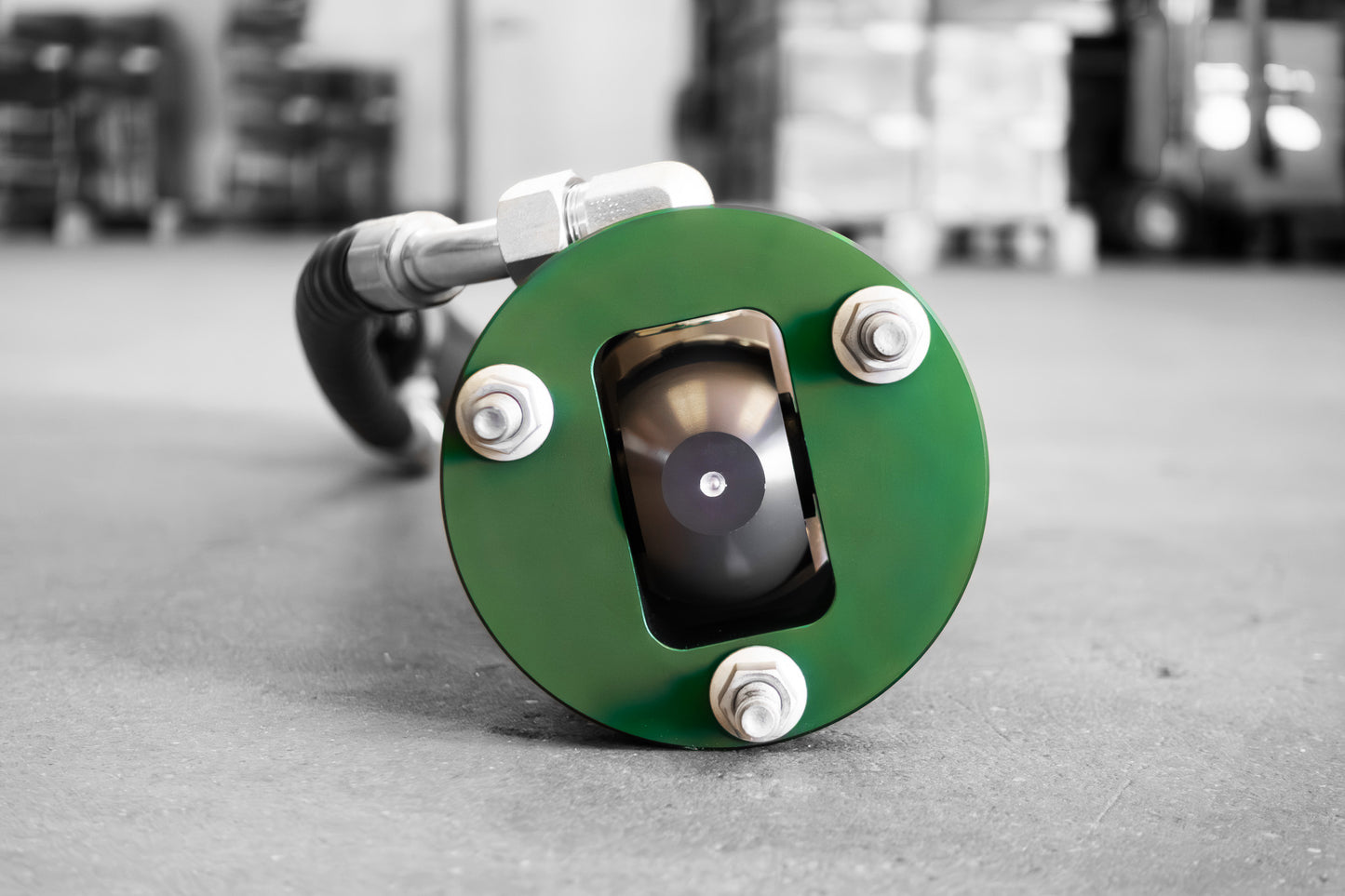

• Direct Fit: Application-specific hardware — no reused OEM top plates, no welding, no compromises.

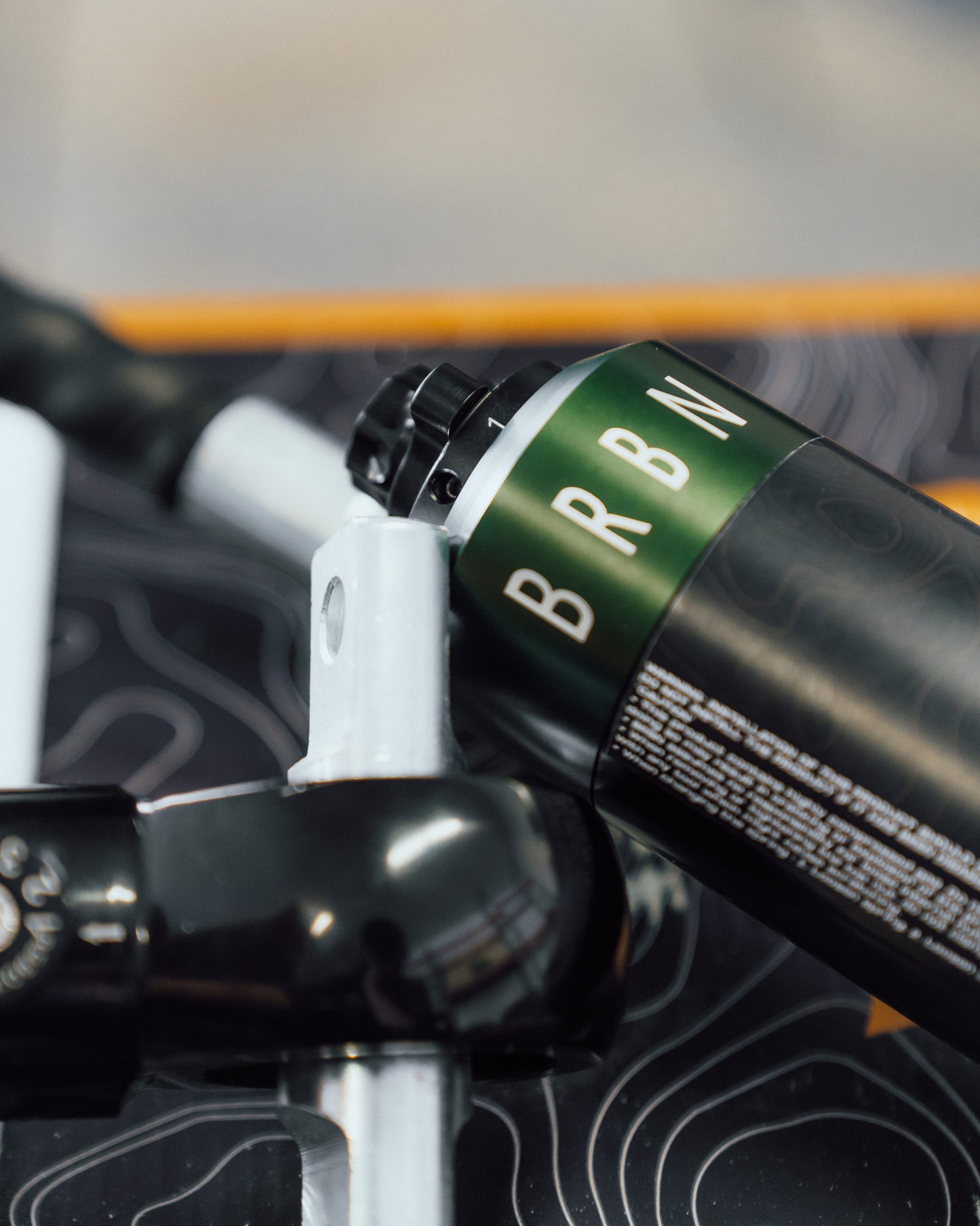

• Premium HD Materials: Coated 2.5” aluminum damper body, 6061-T6 billet-machined aluminum reservoir & components with anodized finish, and chrome-plated shaft.

• Adjustable Ride Height: 2 to 4.25 inches of lift to set your ride height and clearance for wheel/tire combos and terrain. Sasquatch package equipped Broncos will obtain a  0-2.25 inch adjustment range.

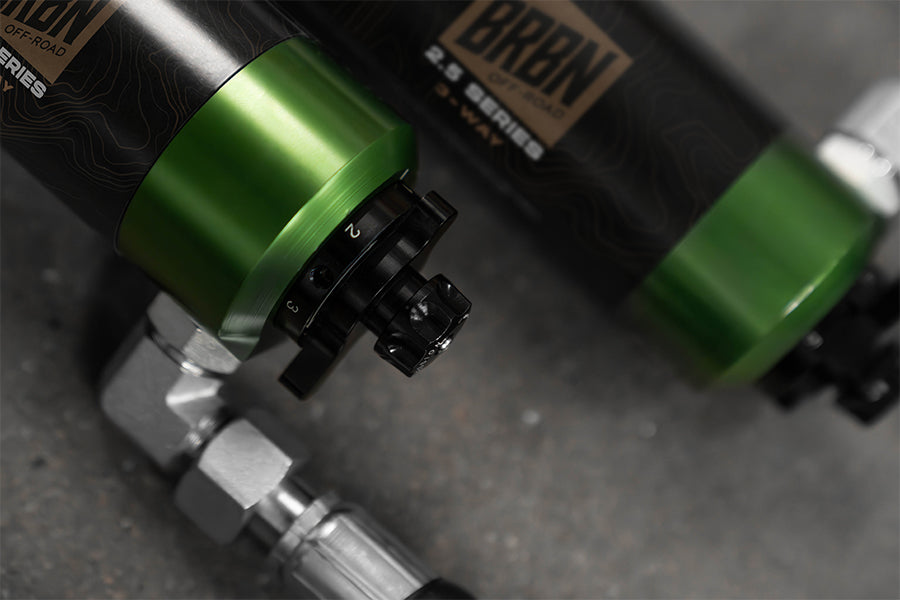

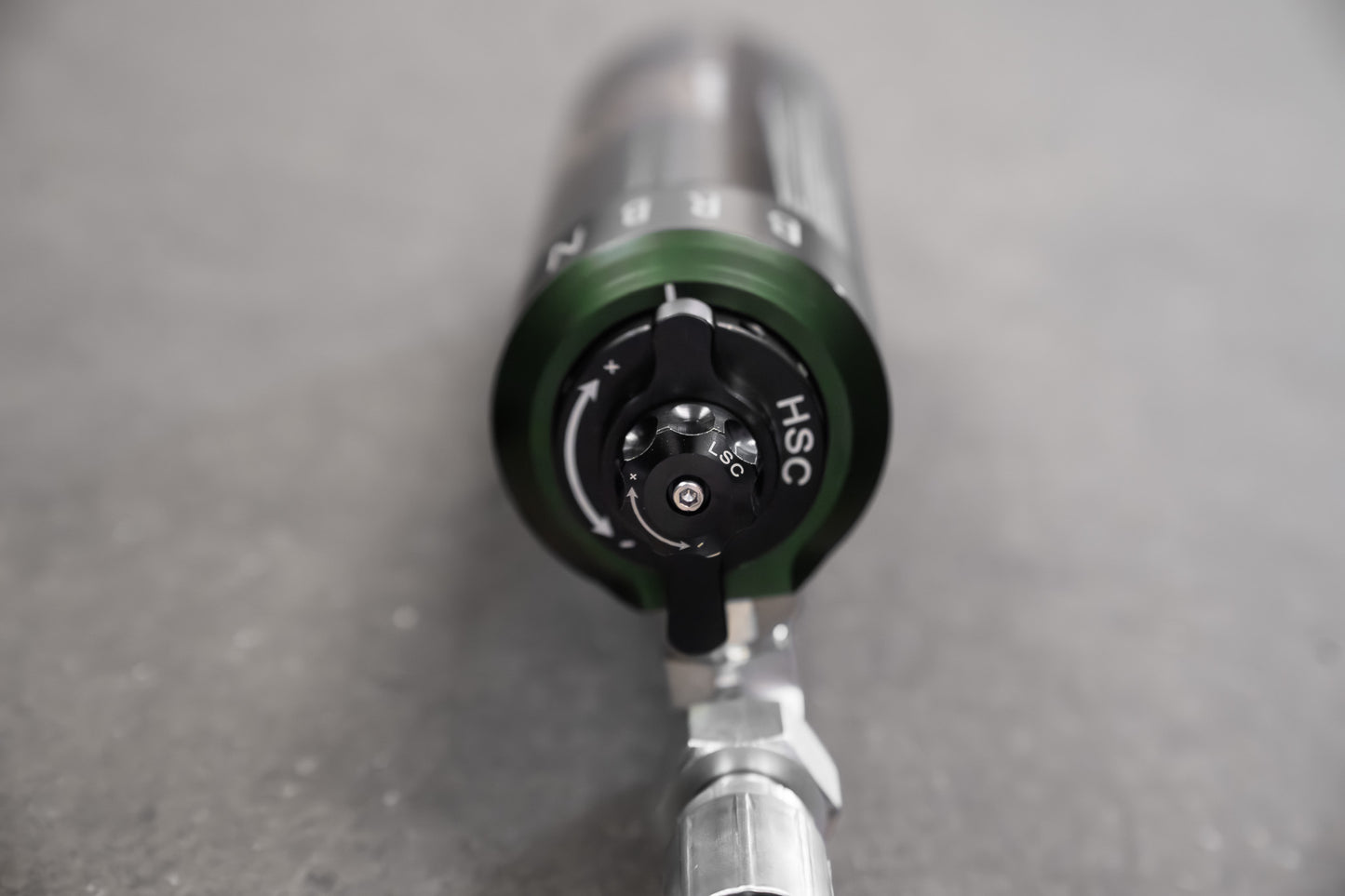

• 3-Way Damping Adjustment: Independent high-speed compression, low-speed compression, and rebound adjustment for precise damper tuning.

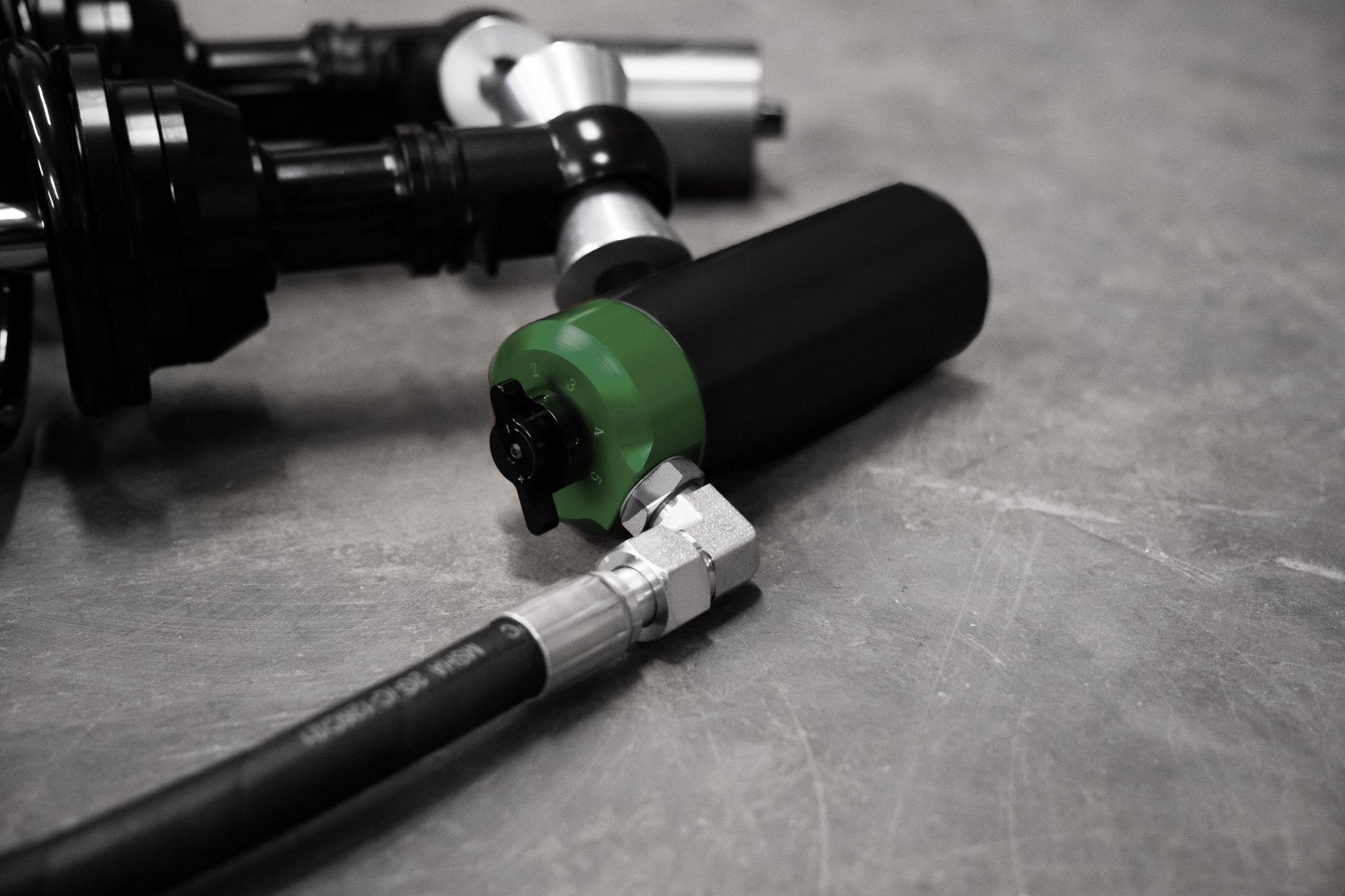

• Vehicle-Specific Valving: External HD reservoir improves cooling, reduces fade, and increases nitrogen + oil capacity for long-haul performance.

• Monotube Damper Design: Consistent performance even in punishing conditions.

• 2.5" Smooth Aluminum Reservoir Body: Precision-built for 2-way damping performance.

• Increased Travel from Stock: More articulation and capability for aggressive terrain.

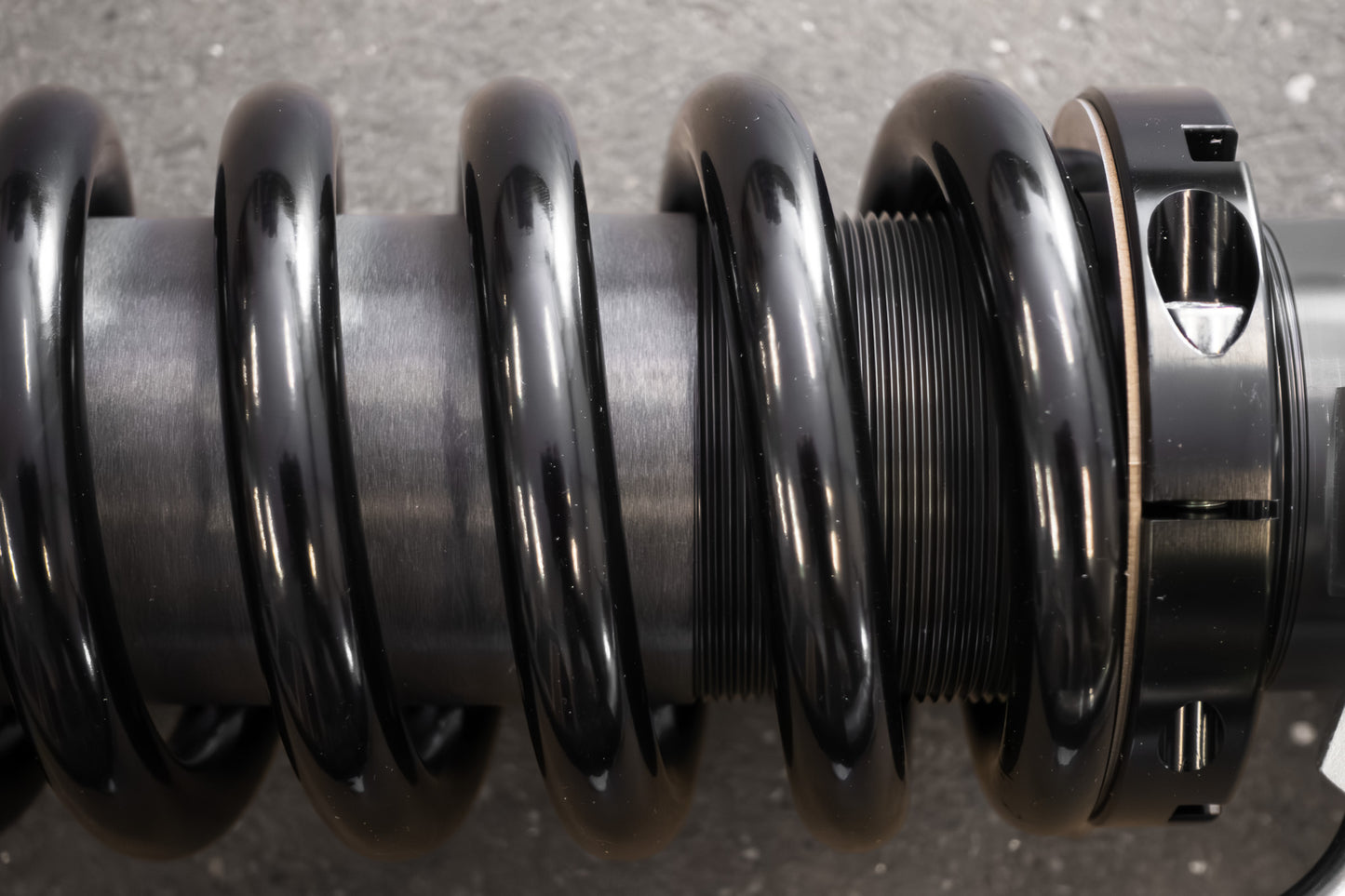

• Springs Included: HD-tuned 4.8 KG spring rate for the Bronco platform.

Additional Details

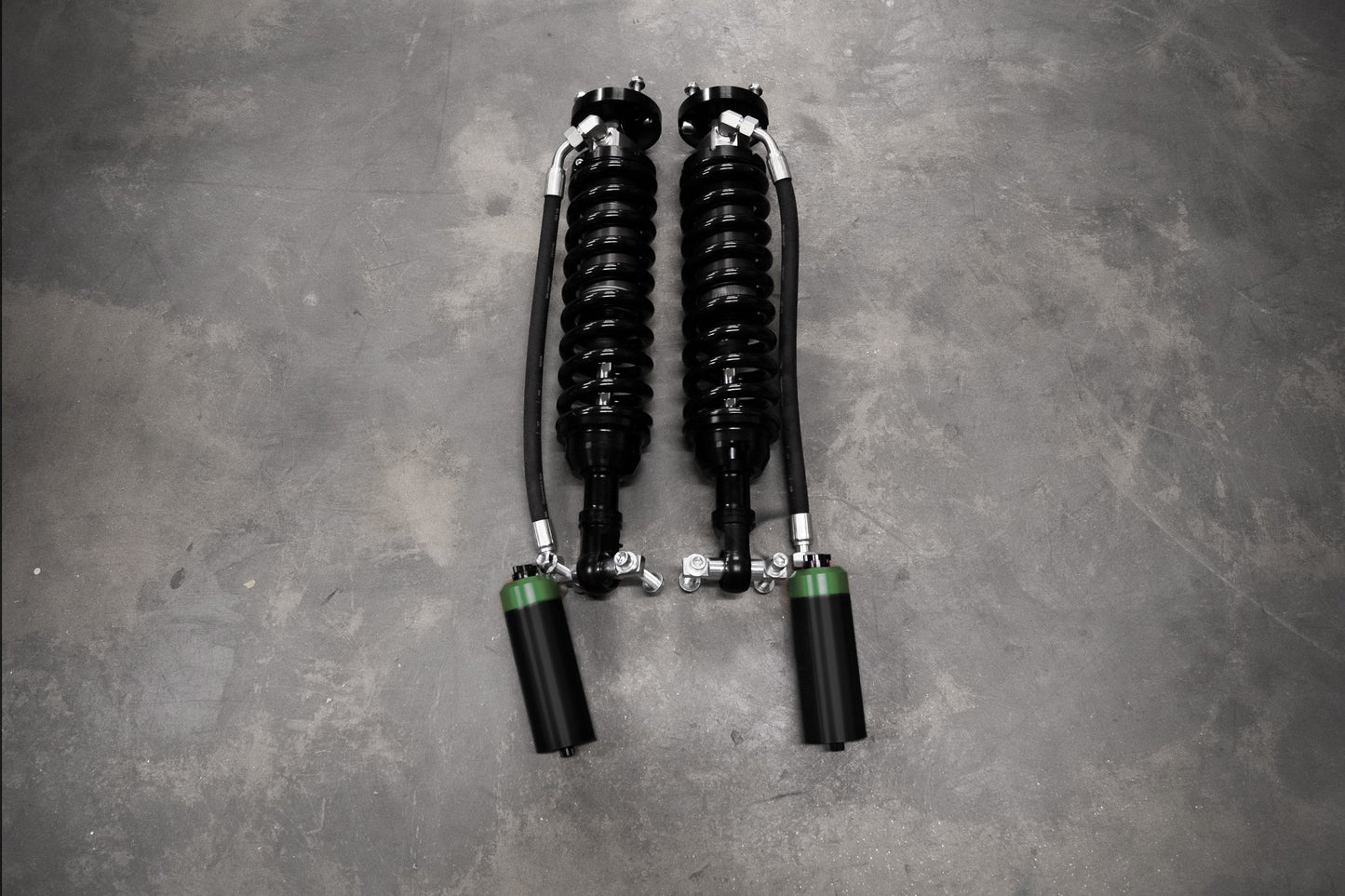

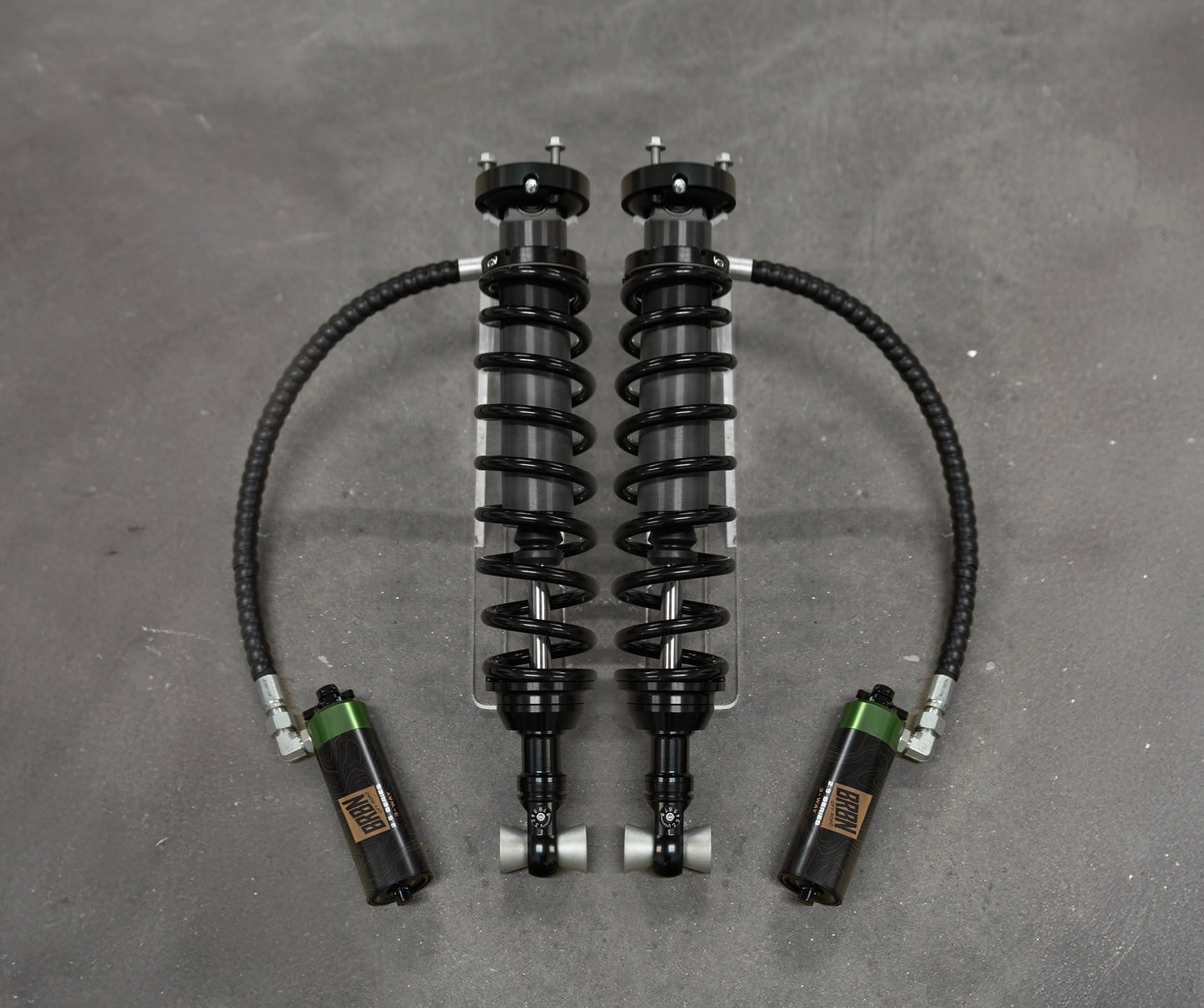

• What’s in the Box: 1 rear pair of HD Coilovers

• Rebuildable: Yes

• Revalvable: Yes

• Warranty: Limited Lifetime Warranty
